Mercury Villager 1996 Fuse Box/Block Circuit Breaker Diagram

Mercury Villager 1996 Fuse Box/Block Circuit Breaker Diagram



FuseAmpsCircuit Protected
115AFog Lamps/DRL
25AMemory
320AIgnition
420AProgrammable Ride Control
560AIntegrated Relay Control Module
640AABS Motor
760AHeadlamps
820AABS Module
960AIgnition Switch
1015AHorn
1115AAlternator
1240ARadio
1320AFuel Pump
1440ADefroster
1520APowertraint Control Module (PCM) Memory
1630AEngine Cooling Pusher Fan
1760ABlower Motor
18-Not Used

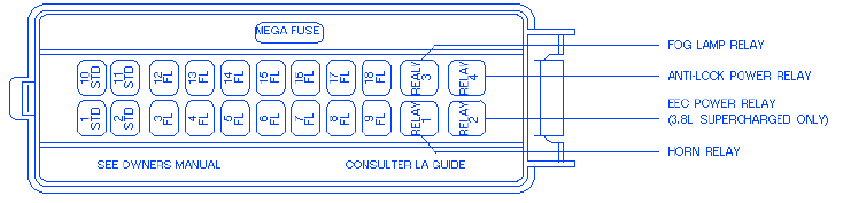

Mercury Villager 1996 Fuse Panel/Board – Fuse Symbol Map
