Volkswagen Rialta 2005 Headlight Fuse Box/Block Circuit Breaker Diagram

Volkswagen Rialta 2005 Headlight Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolAmpsFuse Map
110ALeft Headlight Low Beam
210ARight Headlight Low Beam
310ALicense Plate Lights
415ARear Window Wiper and Washer Sytem
515AWindshield Wiper/Washer
620AA/C, Fresh Air Blower
710ARight Tail Light
810ALeft Tail Light
920ARear Window Defroster
1015AFog Lights
1110ALeft Headlight High Beam
1210ARight Headlight High Beam
1310AHorn
1410ABack-Up Lights
1510AEngine Electronics
1615APower Sunroof, Front Map/Reading Light
1710AEmergency Flasher
1820AFuel Pump (FP), Heated Oxygen Sensor (HO2S) Control Moldule
1930ACoolant Fan, A/C Relay
2010ABrake Lights
2115AInterior Lights, Clock, Luggage Compartment Light
2210ACigarette Lighter, Radio, Luggage Compartment Release

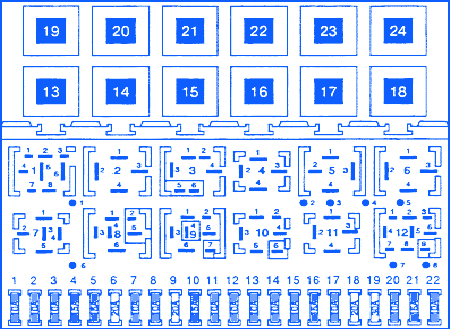

Volkswagen Rialta 2005 Headlight Fuse Panel/Board – Fuse Symbol Map
