Alfa Romeo 147FL 2008 Fuse Box/Block Circuit Breaker Diagram

Alfa Romeo 147FL 2008 Fuse Box/Block Circuit Breaker Diagram



DESCRIPTIONLOCATIONFUSERATING (A)
Main-Beam HeadlightBatteryF215A
FoglightBatteryF3015A
Climate Control CompressorBatteryF17.5A
Climate Control CompressorBatteryF17.5A
Selespeed transmissioBatteryF1115A
Headlight washerBatteryF520A
Primary Services (Electronic Injection)BatteryF87.5A
Secondary Services (Electronic Injection)BatteryF915A
Electronic Injection Control Unit +30BatteryF67.5A
Fuel PumpBatteryF415A
Electronic Injection SystemBatteryF117.5A
Petrol/Ignition Coil InjectorsBatteryF1015A
ServicesBatteryF127.5A
ServicesBatteryF127.5A

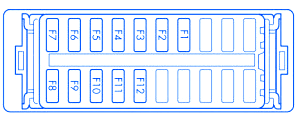

Alfa Romeo 147FL 2008 Fuse Panel/Board – Fuse Symbol Map
