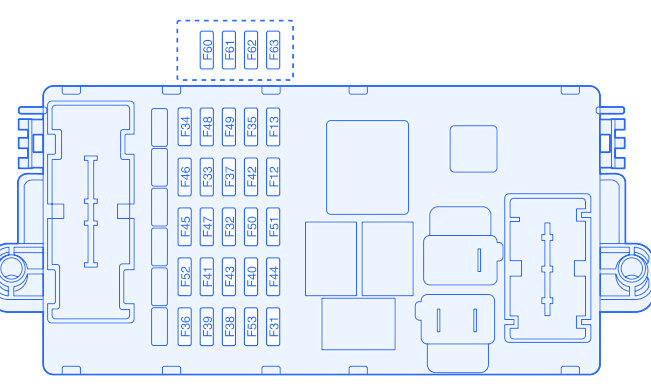

Alfa Romeo 147FL 2008 Under The Dash Fuse Box/Block Circuit Breaker Diagram

Alfa Romeo 147FL 2008 Under The Dash Fuse Box/Block Circuit Breaker Diagram



DESCRIPTIONLOCATIONFUSERATING (A)
Hazard Warning LightDashboardF5310A
Right dipped-Beam HeadlightDashboardF1210A
Left Dipped-Beam HeadlightDashboardF1310A
Braking LightDashboardF3710A
Reversing LightDashboardF357.5A
+30 Direction IndicatorsDashboardF5310A
Headlight Aiming DeviceDashboardF1310A
Climate Control SystemDashboardF3915A
Secondary ServicesDashboardF497.5A
Heater Unit Relay CoilsDashboardF317.5A
Key-Operated +30DashboardF3215A
Volumetric SensorsDashboardF3915A
Selespeed TransmissionDashboardF517.5A
RadioDashboardF3915A
NavigatorDashboardF3915A
Rearscreen WiperDashboardF5215A
Left Rear power WindowDashboardF3320A
Right Rear power WindowDashboardF3420A
Rearscreen HeatingDashboardF4030A
Windscreen-Rearscreen Washer (two-way pump)DashboardF4330A
Cigar LighterDashboardF4420A
Seat With Electric HeatingDashboardF4515A
Heated Wing Mirrors-Heated NozzlesDashboardF517.5A
Cruise ControlDashboardF357.5A
Central Door LockingDashboardF3820A
Services +30DashboardF3915A
Services +30DashboardF3915A
Drivers Door Control Unit SupplyDashboardF4720A
Passengers Door Control Unit SupplyDashboardF4820A
Controls LightingDashboardF497.5A
Climate Control System Controls LightingDashboardF357.5A
Instrument ClusterDashboardF3710A
Instrument ClusterDashboardF5310A
Drivers Door Control UnitDashboardF3915A
ABS Control UnitDashboardF427.5A
Boot Control UnitDashboardF3915A
Air-Bag Control UnitDashboardF507.5A
Tailgate Electric UnlockingDashboardF6025A
Bose SystemDashboardF6125A
Bose SystemDashboardF6215A
SunroofDashboardF6320A

Alfa Romeo 147FL 2008 Under The Dash Fuse Panel/Board – Fuse Symbol Map
