Alfa Romeo Spider 1987 Fuse Box/Block Circuit Breaker Diagram
| Fuse | Amp Rating | Circuit Protected |
|---|---|---|
| 1 | 16A | Power Window |
| 2 | 16A | - |
| 3 | 16A | - |
| 4 | 8A | Digital Clock- Remote Door Mirrors- Courtesy Light- Stop Light |
| 5 | 8A | Fusebox Illumination Bulb- Door Buzer- Radio (If Fitted) |
| 6 | 8A | Winshield Wiper Motor- Washer Pump |
| 7 | 8A | Back-Up Lights- Instrument Light |
| 8 | 8A | Power Window Relay |
| 9 | 8A | Speedometer and Rev. Counter Illumination Bulbs L.H Front and R.H Rear Parking Lights- L.H License Plate Light |
| 10 | 8A | R.H Front and L.H Rear Parking Lights- R.H License Plate Light |
| 11 | 8A | L.H Low Beam Headlamp |
| 12 | 8A | R.H Low Beam Headlamp |
| 13 | 8A | L.H High Beam Headlamp and Warning Light |
| 14 | 8A | R.H High Beam Headlamp |

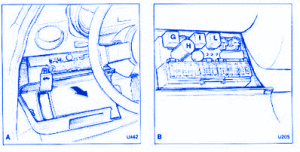

Alfa Romeo Spider 1987 Fuse Panel/Board – Fuse Symbol Map
