Chevrolet Camaro 2010 Compartment Fuse Box/Block Circuit Breaker Diagram
| Fuses | Usage |
|---|---|
| F1 | Universal Garage Door Opener/Ultra-Sonic Reverse Parking Aid |
| F2 | Amplifier |
| F3 | Radio |
| F4 | Spare |
| F5 | Convertible Top 1 |
| F6 | Convertible Top 2 |
| F7 | Spare |
| F8 | Spare |
| F9 | Spare |
| F10 | Spare |
| F11 | Spare |
| F12 | Spare |
| F13 | Engine Control Module/Battery |
| F14 | Regulated Voltage Control |
| F15 | Fuel System Control Module |
| F16 | Spare |

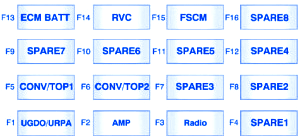

Chevrolet Camaro 2010 Compartment Fuse Panel/Board – Fuse Symbol Map
