Chevrolet Caprice Brougham 1990 Engine Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| 1 | Circuit Breaker |
| 2 | Fuse Assembly and L22 |
| A | Fuse-Inst Panel Lamps |
| B | Receptacle-Lamps |
| C | Fuse-Heater and A/C (C60) |
| D | Fuse-Windshield Wiper |
| E | Fuse-Stop and Traffic Hazard Lamps |
| F | Receptacle-Accessory |
| G | Power-Accessory |
| H | Receptacle-Battery |
| J | Fuse-Radio (U63) |
| K | Receptacle-Directional Signal Lamp Flasher |
| L | Fuse-Tail Lamps |
| M | Fuse-Clock, Cigarette Lighter and Courtesy Lamps |
| N | Fuse-Directional Signal and Back-Up Lamps |
| P | Receptacle-Cruise Control (K30) Rear Window Defogger (C50) (All Ignition Control) |
| Q | Fuse-Gauges |
| R | Receptacle-Seat Belt Buzzer |
| S | Receptacle-Horn Relay |
| T | Receptacle-Ignition Key Lock Warning Buzer |
| U | Receptacle-Traffic Hazard Flasher |

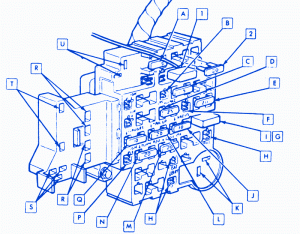

Chevrolet Caprice Brougham 1990 Engine Fuse Panel/Board – Fuse Symbol Map
