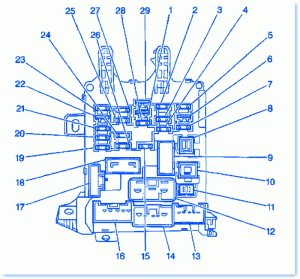

Chevrolet Prizm 2006 Under The Dash Fuse Box/Block Circuit Breaker Diagram

Chevrolet Prizm 2006 Under The Dash Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolFuse MapAmps
1Not Used-
2ST Fuse5A
3D/L Fuse30A
4Fog Fuse15A
5S-HTR Fuse15A
6Not Used-
7CIG Fuse15A
8DEF Fuse40A
9Dome Noise Filter
10POWER Fuse30A
11Short Pin
12C2
13C5
14C4
15ECU-B Fuse7.5A
16C3
17C1
18Not Used-
19DEF-I/UP Fuse10A
20WIP Fuse20A
21GAUGE Fuse10A
22Not Used-
23TURN Fuse7.5A
24STOP Fuse15A
25IGN Fuse7.5A
26TAIL Fuse15A
27ECU-IG Fuse10A
28OBD Fuse7.5A
29Not Used-

Chevrolet Prizm 2006 Under The Dash Fuse Panel/Board – Fuse Symbol Map
