Chevrolet Uplander 2006 Electrical Circuit Wiring Diagram

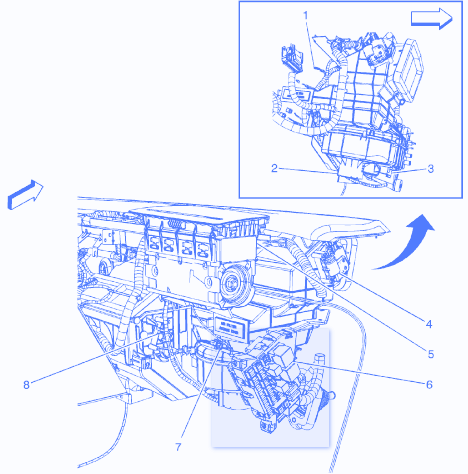

| Symbol | Description |
|---|---|
| 1 | G2000 |
| 2 | Blower Motor |
| 3 | Blower Motor Resistor Assembly |
| 4 | Recirculation Actuator |
| 5 | Inflatable Restraint I/P Module |
| 6 | Fuse Block I/P |
| 7 | Evaporative Temperature Sensor |
| 8 | C205 I/P Harness to HVAC Jumper Harness (CJ3)(Air Temerature Actuator-Right) |
Chevrolet Uplander 2006 Electrical Circuit Symbol Map
