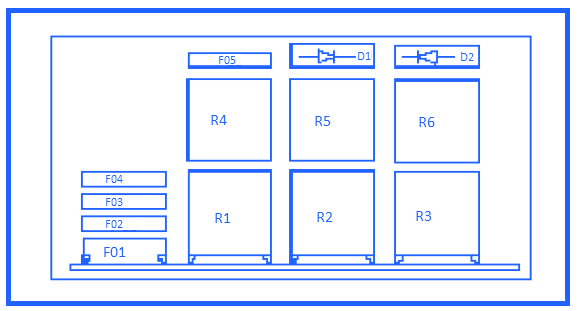

Dacia 1304 The Vehicles Provided With AC System Fuse Box / Block Circuit Breaker Diagram
Dacia 1304 The Vehicles Provided With AC System Fuse Box / Block Circuit Breaker Diagram

№ComponentA
F01A.C. compressor10A
F02Oxygen rod10A
F03Fuel electric pump10A
F04G.M.V. cooling30A
F05*Fog lights15A

RelayComponent
R1Oxygen rod, fuel electric pump
R2A.C. compressor
R3Injection computer, injection witness.
R4*Fog lights.
R5G.M.V. cooling
R6Injection computer ( thermo-protection A.C.)

DiodeTypeComponent
D16A.C. compressor
D26A.C.pressure gauge anti-return

Dacia 1304 The Vehicles Provided With AC System Fuse Panel / Board – Fuse Symbol Map
