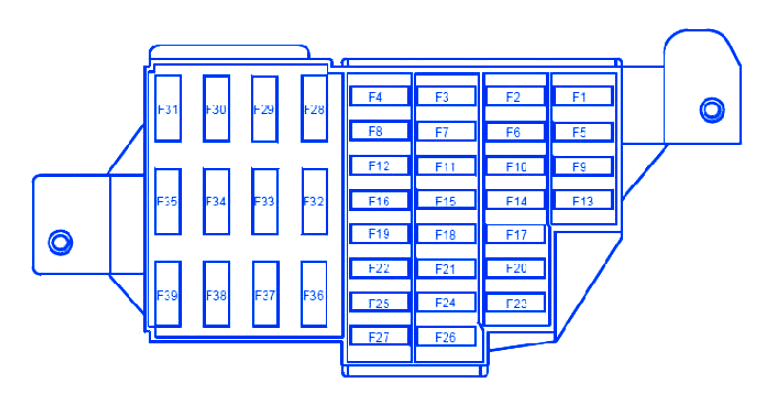

Dacia Duster Passenger Compartment Fuse Box / Block Circuit Breaker Diagram

Dacia Duster Passenger Compartment Fuse Box / Block Circuit Breaker Diagram
Dacia Duster Passenger Compartment Fuse Box / Block Circuit Breaker Diagram

NO.Ampere rating (A)Allocation
F120AWindscreen wiper motor – screen wash/wipe combination switch – UCH
F25AInstrument panel – fuel pump relay control on board – injection computer
F310ABrake light switch
F410AUCH – diagnostic socket – transponder unit – shift pattern control – anti-theft tracker unit
F55AAutomatic gearbox electric control unit – starter relay control – front/rear torque distribution electric control unit
F6
F7
F8
F910ALeft-hand dipped beam headlight – instrument panel
F1010ARight-hand dipped headlight
F1110ALeft-hand main beam headlight – instrument panel
F1210ARight-hand main beam headlight
F1330ADriver’s dual rear electric window control – child safety relay control
F1430ADriver’s dual front electric window control
F1510AAnti-lock braking system ECU
F1615ARadio
F1715AMain electromagnetic horn – secondary electromagnetic horn
F1810ARear left-hand side light – front left-hand side light
F1910ARear right-hand side light – passenger storage compartment light – instrument panel – UCH – hazard warning lights control – air conditioning control panel – radio – central door locking switch – first row cigarette lighter – 4×4 mode control – right-hand number plate light – left-hand number plate light – front right-hand side light – traction control switch – heated rear screen control – parking proximity sensor switch
F207,5ARear fog light

Dacia Duster Passenger Compartment Fuse Panel/Board – Fuse Symbol Map

NO.Ampere rating (A)Allocation
F215AInstrument panel
F22
F2315AFuse on alarm version: Supply to horns via horn relay on board
F24
F25
F265AAirbag and pretensioner control unit
F2720ARear screen wiper motor – wash/wipe combination switch – reversing lights switch – neutral and reversing sensor on manual gearbox – automatic gearbox module – parking proximity sensor electronic control unit
F2815AConsumer cut-out – instrument panel – radio – UCH
F2915AUCH – diagnostic socket – anti-theft tracker unit
F3020AUCH
F3115ASupply to front right-hand and left-hand fog light via front fog relay on board – instrument panel indicator light
F3230Aheated rear screen switch
F33
F3415AFront-rear torque distribution electric control unit
F35
F3630ACold air blower unit supply via cold air blower unit relay and air conditioning control panel
F375ARight-hand and left-hand electric door mirror supply via electric door mirror control
F3815ARadio – first row cigarette lighter
F3910ACold air blower unit relay control

Dacia Duster Passenger Compartment Fuse Panel/Board – Fuse Symbol Map
