Dacia Lodgy Passenger Compartment Fuse Box / Block Circuit Breaker Diagram

Dacia Lodgy Passenger Compartment Fuse Box / Block Circuit Breaker Diagram
Dacia Lodgy Passenger Compartment Fuse Box / Block Circuit Breaker Diagram

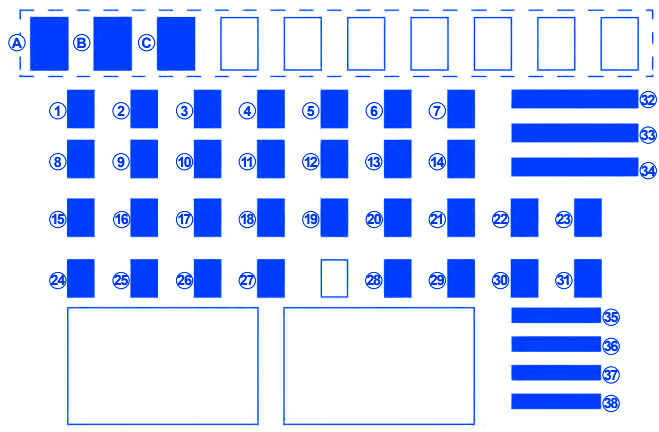

NO.Component
AElectric rear window
BElectric door mirrors
CLPG circuit shut-off or LPG circuit and petrol fuel circuit shut-off
1Front electric window
2Left-hand main beam headlight
3Right-hand main beam headlight
4Left-hand dipped beam headlight
5Right-hand dipped beam headlight
6Left-hand side lights
7Right-hand side lights
8Rear accessories socket
9Rear fog lights
10Horn
11Automatic door locking
12ESC
13Courtesy light
14ABS-ESC
15Reverse gear, windscreen wipe
16Cruise control/Speed limiter, rear-view mirror, unfastened seat belt warning, parking distance control
17Daytime running lights
18Fuel pump
19Injection
20Airbag
21Heated seats
22Power-assisted steering
23Location reserved for additional equipment.
24Direction indicator light
25Passenger compartment ECU
26Passenger compartment ECU
27Steering column control
28Steering column control
29Location reserved for additional equipment
30Instrument panel
31Radio
32Starter
33Windscreen wiper
34Passenger compartment ventilation
35Cigar lighter
36Diagnostic socket
37Defrosting rearview mirror
38Front fog lights

Dacia Lodgy Passenger Compartment Fuse Panel/Board – Fuse Symbol Map
