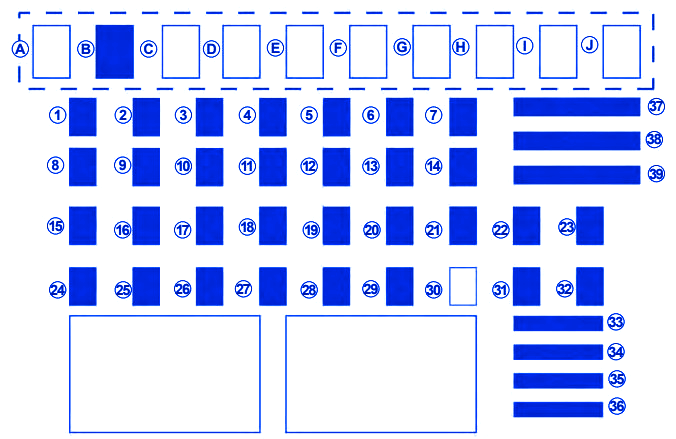

Dacia Sandero Passenger Compartment Fuse Box / Block Circuit Breaker Diagram

Dacia Sandero Passenger Compartment Fuse Box / Block Circuit Breaker Diagram
Dacia Sandero Passenger Compartment Fuse Box / Block Circuit Breaker Diagram

NO.Component
AEmpty location
BDriver’s side window winder
CEmpty spaces
DEmpty spaces
EEmpty spaces
FEmpty spaces
GEmpty spaces
HEmpty spaces
IEmpty spaces
JEmpty spaces
1Front electric window
2Left-hand main beam headlight
3Right-hand main beam headlight
4Left-hand dipped beam headlight
5Right-hand dipped beam headlight
6Left-hand side lights
7Right-hand side lights
8Rear electric windows
9Rear fog lights
10Horn
11Automatic door locking
12ABS-ESC, brake switch
13Interior lights, window winder, air conditioning, boot light
14ESC
15Reverse gear, windscreen wipe
16Cruise control/Speed limiter, heated door mirrors, rear windscreen, unfastened seatbelt warning, parking distance control, multimedia, heated windscreen
17Daytime running lights
18Brake lights
19Injection
20Airbag
21LPG circuit shut-off or LPG circuit and petrol fuel circuit shut-off or sequential gearbox or automatic gearbox
22Power-assisted steering
23Location reserved for additional equipment
24Direction indicator light
25Passenger compartment ECU
26Passenger compartment ECU
27Steering column control
28Location reserved for additional equipment
29Steering column control
30Empty location
31Instrument panel
32Radio
33Cigar lighter
34Diagnostics and radio socket
35Defrosting rearview mirror
36Electric door mirrors
37Starter
38Windscreen wiper
39Passenger compartment ventilation

Dacia Sandero Passenger Compartment Fuse Panel / Board – Fuse Symbol Map
