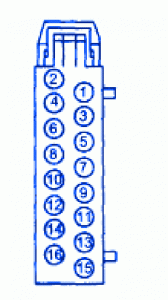

Ford Connect Fiyatları 2007 Central Junction Fuse Box/Block Circuit Breaker Diagram
| Pin | Circuit | Gauge | Circuit Function |
|---|---|---|---|
| 1 | 59(DG-VT) | 20 | Rear Window Defrost Relay Output |
| 2 | 294(WH-LB) | 20 | Voltage Supplied in Start and Run (Overload Protected) |
| 3 | - | - | Not Used |
| 4 | - | - | Not Used |
| 5 | - | - | Not Used |
| 6 | - | - | Not Used |
| 7 | 956(OG-LG) | 20 | Voltage Supplied at all times overload protected |
| 8 | 9(LG-OG) | 16 | Left rear stop-turn lamps signal feed |
| 9 | - | - | Not Used |
| 10 | - | - | Not Used |
| 11 | 720(RD-YE) | 20 | Voltage Supplied at all times overload protected |
| 12 | - | - | Not Used |
| 13 | 937(RD-WH) | 20 | Voltage Supplied in Start and Run (Overload Protected) |
| 14 | 5(OG-LB) | 16 | Right Rear Stop-Turn Lamps Signal Feed |
| 15 | 705(LG-OG) | 16 | Battery Saver Relay Output |
| 16 | 64(DG) | 16 | Right Rear Stop-Turn Lamps Signal Feed |
Ford Connect Fiyatları 2007 Central Junction Fuse Panel/Board – Fuse Symbol Map
