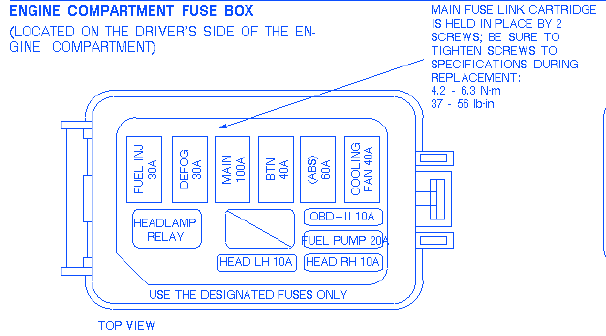

Ford Escort SOHC 2000 Fuse Box/Block Circuit Breaker Diagram
| FUSE LINK CARTRIDGE | AMPS | CIRCUIT PROTECTED |
|---|---|---|
| FUEL INJ. | 30A | Air Bags, Constant Control Relay Module (PCM Relay), Generator |
| DEFOG. | 30A | Rear Window Defrost |
| MAIN | 100A | Overall Circuit Protection |
| BTN | 40A | Hazard, Stop, Door Lock, Tail, Room and Horn Fuses of The I/P Fuse Panel |
| ABS | 60A | ABS Main Relay |
| COOLING FAN | 40A | Constant Control Relay Module (Cooling Fan) |
| FUSE | AMPS | CIRCUIT PROTECTED |
|---|---|---|
| OBD-II | 10A | Data Link Connector (DLC), Instrument Cluster |
| FUEL PUMP | 20A | Constant Control Relay Module (Fuel Pump) |
| HEAD RH | 10A | Head Lamps |
| HEAD LH | 10A | Head Lamps |
Ford Escort SOHC 2000 Fuse Panel/Board – Fuse Symbol Map
