Ford Explorer 1991 Fuse Box/Block Circuit Breaker Diagram
| Fuse | Amps | Circuits Protected |
|---|---|---|
| 1 | 30A | Fuel Pump Relay |
| 2 | 40A | Headlamps, Fuse Panel Feed |
| 3 | - | Not Used |
| 4 | 40A | Fuse Panel Feed |
| 5 | 30A | Power Door Locks |
| 6 | 40A | Rear Window Defroster |
| 7 | - | Not Used |
| 8 | 30A | EEC Power Relay |
| 9 | 40A | Electronic Shift |
| 10 | 60A | Ignition Switch, Premium Sound, Trailer Tow |
| 11 | 15A | Underhood Lamp, DRL (Canada Only) |
| 12 | 15A | Alternator Field |

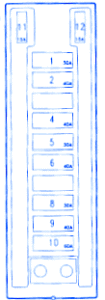

Ford Explorer 1991 Fuse Panel/Board – Fuse Symbol Map
