Ford Explorer 2000 Under The Hood Fuse Box/Block Circuit Breaker Diagram
| Fuse Position | Amps | Circuits Protected |
|---|---|---|
| 1 | 7.5A | Exterior Rear View Mirror Switch, Power Antenna, Memory Seat Switch |
| 2 | 7.5A | Blower Motor Relay, Restraints Control Module (RCM), EATC |
| 3 | 7.5A | Trailer Tow Connector (RH Stop/Turn) |
| 4 | 10A | Left Headlamp |
| 5 | - | Not Used |
| 6 | 7.5A | Rear Blower Motor(W/O EATC) |
| 7 | 7.5A | trailer Tow Connector (LH Stop/Turn) |
| 8 | 10A | Right Headlamp, Fog Lamp Relay |
| 9 | 7.5A | Brake Pedal Position (BPP) Switch Output |
| 10 | 7.5A | Speed Control Servo, Generic Electronic Module (GEM), Rear Blower Relay (WEATC), Brake Shift Lock Actuator,Overhead Console,Blend Door Actuator (W/OEATC), Flasher Turn Signals, Air Suspension Control, Steering Rate Sensor, RICP(Rear Blower Switch) |
| 11 | 7.5A | Instrument Cluster, Daynight Mirror/Autolamp Sensor |
| 12 | 7.5A | Frost Washer Control Relay, Rear Washer Control Relay, Washer Pump Motor |
| 13 | 20A | Brake Pedal Position (BPP)Switch, Stoplamps, Hight Mounted Stoplamps, Brake Pressure Switch (Speed Control), Trailer Tow Stoplamps |
| 14 | 10A | 4 Wheel Anti-Lock Brake System (4WABS) Module |
| 15 | 7.5A | Air Bag Indicator Lamp, Charge Indicator Lamp |
| 16 | 30A | Front Wiper Motor, Wiper High/Low Relay, Wiper RUN Relay |
| 17 | 25A | Cigar Lighter, Data Link Connector (DLC) |
| 18 | 25A | Driver Unlock Relay, All Unlock Relay, All Lock Relay, Driver and Passenger Power Lumbar, Driver and Passenger Power seat Motors, Memory Seat Module |

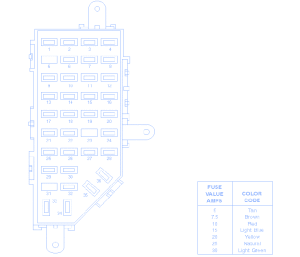

Ford Explorer 2000 Under The Hood Fuse Panel/Board – Fuse Symbol Map
