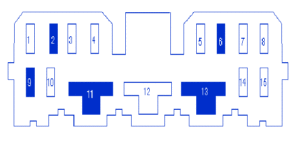

Ford Ikon Mini 2004 Fuse Box/Block Circuit Breaker Diagram
| PIN | CIRCUIT | CIRCUIT FUNCTION | |
|---|---|---|---|
| 1 | 524 | R/Y | Remote Anti-Theft Personality Module |
| 2 | - | - | Not Used |
| 3 | 301 | R/BK | Rear Park Lamps, License Lamps, A/T Select Illumination |
| 4 | 331 | P/W | Door Courtesy Lamp Switches, Remote Anti-Theft Personality Module |
| 5 | 368 | BL | Left Rear Park/Stop/Turn Lamps |
| 6 | - | - | Not Used |
| 7 | 525 | PK | Drivers Seat Belt Buckle Switch |
| 8 | 441 | Bl/BK | Remote Anti-Theft Personality Module Power |
| 9 | - | - | Not Used |
| 10 | 330 | BL/R | Luggage Compartment Lamp, Remote Anti-Theft Personality Module |
| 11 | - | - | Not Used |
| 12 | 352 | GN/Y | Shift Lock Actuator |
| 13 | - | - | Not Used |
| 14 | 160 | BK/Y | Shift Lock Actuator |
| 15 | 367 | Y | Right Rear Park/Stop/Turn Lamps |
Ford Ikon Mini 2004 Fuse Panel/Board – Fuse Symbol Map
