Ford Mustang 2005 Main Engine Fuse Box/Block Circuit Breaker Diagram
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description | |
|---|---|---|---|
| 1 | 20A | Cigar Lighter | |
| 2 | 20A | Engine Controls | |
| 3 | - | Not Used | |
| 4 | 10A | Right-Hand Low Beam Headlamp | |
| 5 | 15A | Instrument Cluster, Traction Control Switch | |
| 6 | 20A | Starter Motor Relay | |
| 7 | 15A | GEM, Interior lamps | |
| 8 | 20A | Engine Controls | |
| 9 | 30A | Mach 460 Subwoofers | |
| 10 | 10A | Left-Hand Low Beam Headlamp | |
| 11 | 15A | Back-Up Lamps | |
| 12 | - | Not Used | |
| 13 | 15A | Electronic Flasher | |
| 14 | - | Not Used | |
| 15 | 15A | Power Lumbar | |

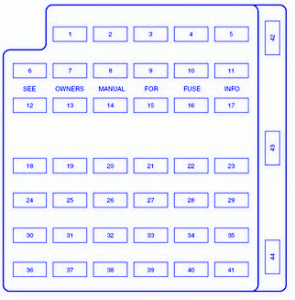

Ford Mustang 2005 Main Engine Fuse Panel/Board – Fuse Symbol Map
