Harley Ultra Classic 2007 Fuse Box/Block Circuit Breaker Diagram
| Fuse/Relay Symbol | Fuse/Relay Map |
|---|---|
| 1 | Headlamp |
| 2 | Ignition |
| 3 | Lighting |
| 4 | Instruments |
| 5 | Brakes/Cruise |
| 6 | Radio Memory |
| 7 | Radio Power |
| 8 | Accessory |
| 9 | Battery |
| 10 | Brake Light Relay |
| 11 | P&A |

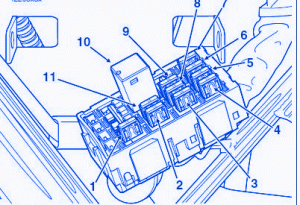

Harley Ultra Classic 2007 Fuse Panel/Board – Fuse Symbol Map
