Hyundai 1.5L 2003 Main Fuse Box/Block Circuit Breaker Diagram
| FUSE | AMP | RELATED CIRCUIT | |||
|---|---|---|---|---|---|
| 1 | 10A | Hazard Warning, Back-up Lamp Switch, A/T Shift & Key Lock Control Module | |||
| 2 | 10A | ETACM, Generator Resistor, Instrument Cluster | |||
| 3 | 10A | Instrument Cluster | |||
| 4 | 15A | Air Bag | |||
| 5 | 10A | ECM, TCM, A/T Shift Lever | |||
| 6 | 10A | Power Door Lock | |||
| 7 | 10A | Hazard Warning, ETACM, | |||
| 8 | 10A | Stop Lamp, A/T Shift Lever, A/T Key Interlock Selenoid | |||
| 9 | 20A | Rear Window Defogger | |||
| 10 | 10A | Headlamp, Power Window, ETACM, Front Fog Lamp, Blower Control, Wiper | |||
| 11 | 20A | Front Wiper & Washer | |||
| 12 | - | Not Used | |||
| 13 | 10A | ABS Control, ABS Bleeding | |||
| 14 | 10A | Clock Audio | |||
| 15 | 15A | Cigarette Lighter | |||
| 16 | 10A | Power Door Mirror Switch | |||
| 17 | 10A | Power Door Mirror Motor & Defogger | |||
| 18 | 20A | Rear Wiper | |||

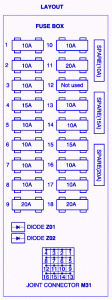

Hyundai 1.5L 2003 Main Fuse Panel/Board – Fuse Symbol Map
