Hyundai Accent 1996 Fuse Box/Block Circuit Breaker Diagram
| Fuse | Amperages | Circuits |
|---|---|---|
| 1 | 10A | A/C Compressor Controls |
| 2 | 10A | Anti-Lock Brake System |
| 3 | 10A | Turn/Hazard Lamps |
| 4 | 15A | Interlock System,Stop Lamps |
| 5 | 10A | Instrument, Cluster, Clock, Radio, Dome and Trunk Lights, ECM, Ignition Key Switch |
| 6 | 20A | Rear Defogger |
| 7 | - | Not Used |
| 8 | 15A | Wiper/Washer |
| 9 | 10A | Back-Up Lamps, Turn/Hazard Lamps |
| 10 | 10A | Instrument Cluster, Interlock System, Seat Belt and Ignition Key Warnings |
| 11 | 10A | Supplemental Restraint System (SRS) |
| 12 | 15A | Supplemental Restraint System (SRS) |
| 13 | 15A | Cigarette Lighter |
| 14 | 10A | Radio, Clock, Interlock System |
| 15 | 10A | Automatic Transaxle |
| 16 | 10A | Blower Relay, H/Lamp Relay |

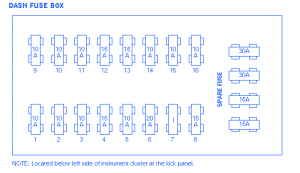

Hyundai Accent 1996 Fuse Panel/Board – Fuse Symbol Map
