Ikco Dena Engine Compartment Fuse Box / Block Circuit Breaker Diagram
Number Ampere ratting [A] Description 1 40 Electric supply for ignition switch 2 30 Relay switch for fog lamp/horn 3 40 BCM Inside systems electric connection supply 4 30 BCM Inside systems electric connection supply 5 40 Fan (High speed) 6 30 Fan (Low speed) 7 30 Brake (ABS) 8 40 Brake (ABS) 9 — Reserve 10 20 Front node supply 11 15 Front node supply 12 30 Front node supply windshield wiper and relay for windshield washer pump 13 — Spare 14 30 Double relay supply 15 10 Fuel pump supply 16 10 Engine unit supply 17 — Reserve 18 — Reserve 19 — Reserve 20 — Reserve
Symbol Relay Map Ra Relay switch for engine control Rb Relay switch for fuel pump R1 Relay switch for fog lamp R2 Relay switch for horn R3 Relay switch for windshield wiper R4 Relay switch for windshield wiper R5 Relay switch for fan (high speed) R6 Relay switch for fan (low speed) R7 Relay for fan R8 Relay for windshield washer pump

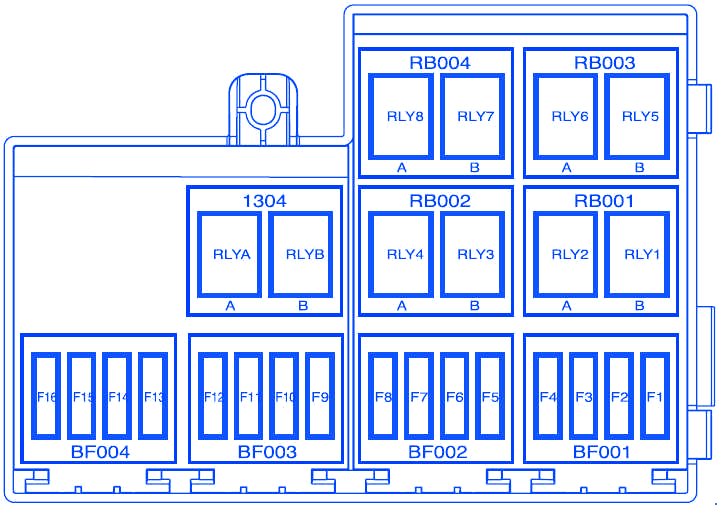

Ikco Dena Engine Compartment Fuse Panel / Board – Fuse Symbol Map
