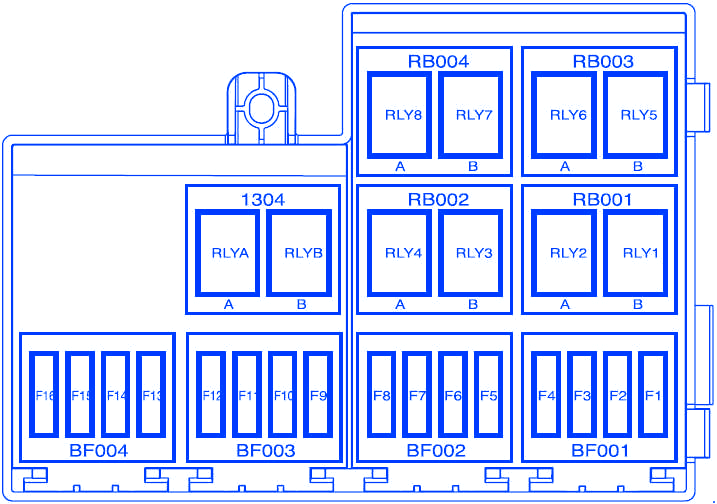

Ikco Samand Soren Engine Compartment Fuse Box / Block Circuit Breaker Diagram
Fuse Ampere ratting [A] Description 1 40 Power Start switch feeding 2 30 Front fog relay / horn 3 40 Internal power supply system 4 30 Internal power supply system 5 40 High speed fan 6 30 Low speed fan relay 7 30 Brake 8 30 Brake 9 40 Internal power supply system 10 20 Forward node supply 11 15 Forward node supply 12 30 Front /Rear Wiper Relay and Washer pump relay 13 — Forward node supply 14 30 Double power supply relay 15 10 Feeding fuel pump 16 10 Engine unit supply 17 — Reserve 18 — Reserve 19 — Reserve 20 — Reserve
Symbol Relay Map Ra Engine control relay Rb Petrol pump Relay R1 Fog Relay R2 Horn Relay R3 Windscreen wiper relay R4 Windscreen wiper relay R5 High speed fan relay R6 High speed fan relay R7 Fan relay R8 Window Washer Pump Relay
Ikco Samand Soren Engine Compartment Fuse Panel / Board – Fuse Symbol Map
