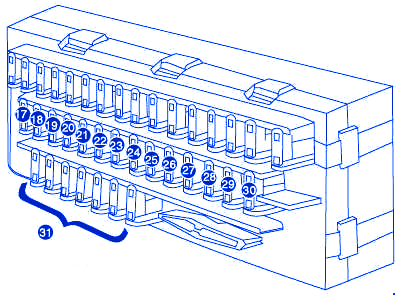

Iran Khodro Arisun On The Dashboard Fuse Box / Block Circuit Breaker Diagram

Fuse	Description
F1	RADIO/CD player after switch power supply
F2	—
F3	ABS modulator after switch power supply – ECU after switch power supply
F4	Light of rear left and right position lamp, and rear license plate lamp – light signal of relay emerging that lamps are remained turned on
F5	Base 4, three-purpose key and ECU feedback to powering on cooler for running fan – reel of yellow relay of heater fan – HEATING/VENTILATION power supply – reel of relay of compressor cut off
F6	Air bag power supply
F7	Horn relay contact – front fog lamp relay contact – horn relay reel
F8	F15, F25 fuses entrance shunt
F9	Front position lamps
F10	—
F11	—
F12	Reverse gear lamp – Instrument panel after switch power supply – Immobilizer after switch power supply – Diag. after switch power supply – ABS warning relay power supply
F13	—
F14	MAIN FUSE, main power supply of indicator lever including lamps, indicators, and fog lamp
F15	Front ceiling lamp power supply – Central lock power supply

Fuse	Description
F16	Lighter power supply
F17	—
F18	Rear fog lamp
F19	Lighting lamps power supply
F20	—
F21	Yellow relay contact of Heater fan
F22	—
F23	A/C switch power supply
F24	Snow wiper motor – snow wiper lever – Snow power unit power supply, and glass washer pump
F25	Instument panel permanent power supply – RADIO/CD player permanent power supply – Diag. permanent power supply
F26	Flasher unit permanent power supply – RADIO/CD player panel buttons power supply
F27	—
F28	Brake lamps – front window regulator relay reel – RADIO/CD player panel after switch power supply
F29	Front window regulator relay contact
F30	Map reading lamp power supply – Steering wheel circuit power supply – relay emerging that lamps are remained turned on
F31	Spare fuses
