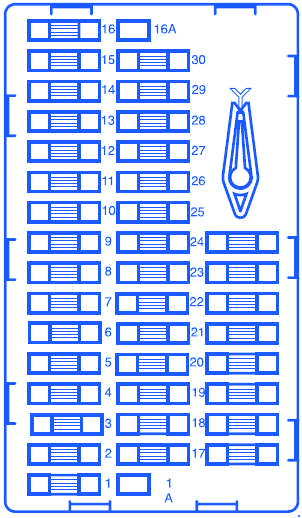

Iran Khodro Samand Fuse Box / Block Circuit Breaker Diagram

Number	Ampere [A]	Description
F1	10	Radio & Handsfree
F2	5	Control Unit
F3	5	Anti-Lock Brake
F4	5	Beep Sound, Right Indicators & Lamps
F5	5	Air Conditioner
F6	10	Air Bag / Cruise Control
	30	ABS
F7	20	Horn
F8	—	Shunt: To disconnect all fuses
F9	5	Left Indicator Lamps, Number Plate Light
F10	30	Electric Rear Window Regulator
F11	30	Front Headlights
F12	5	Reverse Gear Lights, Rear Sensors
F13	20	Front Fog Tails
F14	30	ABS
F15	15	Door Lights, Courtesy Lights & Electrical Aerial
F16	20	Cigarette Lighter
F17	10	Alarm, Anti-Theft, Audio System Memory
F18	10	Rear Fog Tails
F19	5	Heater/ Display / Radio/ Switch Lights
F20	30	Automatic Backrest of Front Seat
F21	30	Blower Relay
F22	10	—
F23	5	Rear Window Heater Switch
F24	20	Wiper Engine/ Wiper Timer / Washer Pump
F25	5	Radio/ Clock Memory, Water Ampere (Coolant Temperature Unit)
F26	15	Flashers
F27	30	Rear Window Heater, Mirror Heater
F28	10	Instrument Panel Screen/Digital Clock/ Brake Warning Light
F29	30	Electrical Front Window Regulator
F30	10	Map Reading Light/ Glove Box/ Vanity Mirror/Electric Mirror
