Iran Khodro Samand Engine Fuse Box / Block Circuit Breaker Diagram

Fuse	Ampere ratting [A]	Description
1	40A	Electric supply for ignition switch
2	30A	Relay switch for fog lamp/horn
3	40A	BCM Inside systems electric connection supply
4	30A	BCM Inside systems electric connection supply
5	40A	Fan (High speed)
6	30A	Fan (Low speed)
7	30A	Brake (ABS)
8	40A	Brake (ABS)
9	—	Reserve
10	20A	Front node supply
11	15A	Front node supply
12	30A	Front node supply windshield wiper and relay for windshield washer pump
13	—	Spare
14	30A	Double relay supply
15	10A	Fuel pump supply
16	10A	Engine unit supply
17	—	Reserve
18	—	Reserve
19	—	Reserve
20	—	Reserve

Symbol	Relay Map
RLYa	Relay switch for engine control
RLYb	Relay switch for fuel pump
RLY1	Relay switch for fog lamp
RLY2	Relay switch for horn
RLY3	Relay switch for windshield wiper
RLY4	Relay switch for windshield wiper
RLY5	Relay switch for fan (high speed)
RLY6	Relay switch for fan (low speed)
RLY7	Relay for fan
RLY8	Relay for windshield washer pump

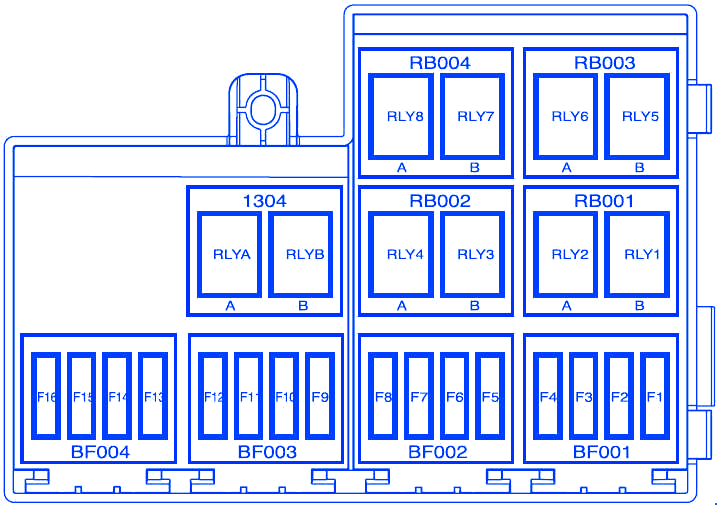

Iran Khodro Samand Engine Fuse Panel/Board – Fuse Symbol Map
