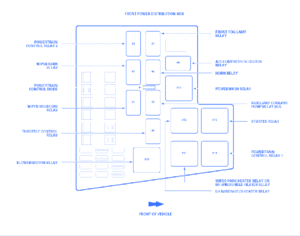

Jaguar S Type 2004 Distribution Fuse Box/Block Circuit Breaker Diagram
| Relay Symbol | Relay Map |
|---|---|
| #1 | Wiper High/Low Relay |
| #2 | Wiper Park Relay |
| #3 | Powertrain Control Relay |
| #4 | Throttle Control Relay |
| #5 | Auxiliary Coolant Pump Relay (V8) |
| #6 | Horn Relay |
| #7 | Front Fog Lamp Relay |
| #8 | A/C Compressor Clutch Relay |
| #10 | Blower Motor Relay |
| #11 | Wiper Park Heater Relay or RH Windshield Heater Relay |
| #12 | LH Windshield Heater Relay |
| #13 | Power Wash Relay |
| #14 | Powertrain Control Relay |
| #15 | Starter Relay |
Jaguar S Type 2004 Distribution Fuse Panel/Board – Fuse Symbol Map
