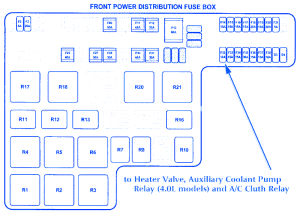

Jaguar S Type 2007 Front Power Distribution Fuse Box/Block Circuit Breaker Diagram

Jaguar S Type 2007 Front Power Distribution Fuse Box/Block Circuit Breaker Diagram



SymbolDescription
R1EMS Control Relay (Diesel)
R2Heated Oxygen Sensor Relay
R3Ignition Coil Relay
R4Throttlr Motor Relay
R5EMC Control Relay
R6Wiper High/Low Relay
R7Auxiliary Coolant Pump Relay
R8A/C Compressor Clutch Relay
R10LH HID Relay
R11Front Fog Lamp Relay
R12Horn Relay
R13RH HID Relay
R16Wiper Park Relay
R17LH Windshield Heater Relay
R18Power Wash Relay
R20Starter Relay
R21Wiper Park Heater Relay or RH Windshield Heater Relay

Jaguar S Type 2007 Front Power Distribution Fuse Panel/Board – Fuse Symbol Map
