FUSE NO.RATING(AMPS)CIRCUIT
F110ARight-Hand main Beam
F215AFront Fog Lights, Master Light Switch
F3-Not Used
F410ALeft-Hand main Beam
F510AAir Conditioning Compressor Clutch
F67.5AGenerator
F7-Not Used
F830AWiper Switch
F930AWiper Switch, Windscreen Washer Pump, Wiper Motor
F1015AIgnition Coils
F1115AAutomatic Transmission Control Module
F12-Not Used
F135ATraction Control System, Anti-Lock Braking System, Dynamic Stability Control System
F1430AHeated Front Screen Left-Hand Side
F1530AHeated Front Screen Right-Hand Side
F165ARadiator Fans Speed Control
F1710AFuel Injectors
F1810ACanister Purge Valve, Airflow Meter, Inlet Manifold Tuning Valve, Canister Close Valve, Vacuum Module
F1910AEngine Control Module, Throttle Motor Relay
F2030AOxygen Sensor Heater B
F2130AOxygen Sensor Heater A
F22-Not Used
F23-Not Used
F2430APower Wash Pump
F25-Not Used
F26-Not Used
F2715ATransit Relay, Vacuum Module, Battery-Backed Sounder
F28-Not Used
F2920ALeft-Hand Dip Beam, Master Light Switch (Autolights), Head Light Levelling, Instrument Panel
F3020ARight-Hand Dipped Beam

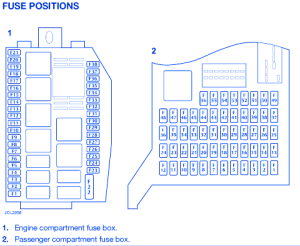

Jaguar Type X 2005 Fuse Panel/Board – Fuse Symbol Map
