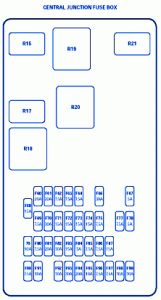

Jaguar X Type 2500cc 2009 Junction Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| R15 | MAIN BEAM/FRONT FOG RELAY |
| R16 | NOT USED |
| R17 | REVERSE LAMPS RELAY |
| R18 | IGNITION RELAY |
| R19 | HEATED REAR WINDOW RELAY |
| R20 | A/C BLOWER RELAY |
| R21 | BATTERY SAVER RELAY |
Jaguar X Type 2500cc 2009 Junction Fuse Panel/Board – Fuse Symbol Map
