Jaguar C-Type 1954 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Amps | Fuse Map |
|---|---|---|
| 1 | 50A | Fog |
| 2 | 50A | Side Tail No.Plate Lamps |
| 3 | 35A | Headlamps Main Beam |
| 4 | 35A | Headlamp Dip |
| 5 | 50A | Interior Lighting Cigar Lighter |
| 6 | 50A | Ignition Controlled Auxiliaries |

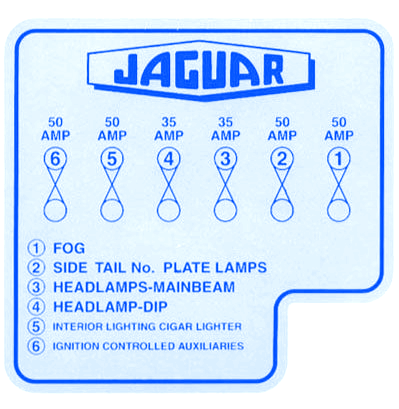

Jaguar C-Type 1954 Fuse Panel/Board – Fuse Symbol Map
