Jaguar X8 2002 Fuse Box/Block Circuit Breaker Diagram

Jaguar X8 2002 Fuse Box/Block Circuit Breaker Diagram



FUSE SYMBOLAMPSCIRCUIT
120ALeft-Hand Seat Control Module
215ADoor Lock Relay, Door Locking Actuators
315ABody Processor Module
410ADoor Mirror Heaters, Mirror Foldback
55ARadio Telephone
610AAir Conditioning
720ABody Processor Module (Column Motor Power)
85ARear Window Switchpack, Passenger Door Switchpack
95APassenger Seat Switchpack
105ARadio Telephone, Rear Courtesy Lamp/Map Light
1120AAir Conditioning Right-Hand Blower Relay
125AIn-Car Entertainment
1325ARight-Hand Rear Door Control Module
1425ACigar Lighter
1525ARight-Hand Door Control Module
16-Not Used
1715ASunrrof
1825ARight-Hand and Left-Hand Seat Heaters

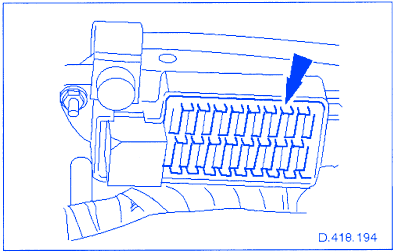

Jaguar X8 2002 Fuse Panel/Board – Fuse Symbol Map
