Jeep ZJ 1998 Main Engine Fuse Box/Block Circuit Breaker Diagram
| Fuse | Amps | Protected Systems | ||
|---|---|---|---|---|
| 1 | 20A | Power Antena Relay (1993), Trailer Tow Relay(1993-95) | ||
| 2 | 15 | Brake Lamps | ||
| 3 | 20A | Hazard Lamps | ||
| 4 | 15A | Security Lamp | ||
| 5 | 15A | Interior Lighting | ||
| 6 | 15A | Security Alarm Module | ||
| 7 | 15A | Security Alarm Relay, Security Alarm Module, Flash-To-Pass | ||
| 8 | 15A | Overhead Console, Keyless Entry, Radiio Memory/Clock/Chime Module, power Locks, Power Mirrors, HEVAC and VIC | ||
| 9 | 20A | Rear Wiper | ||
| 10 | 15A(1993) | Radio Accessory | ||
| 10A(1994-95) | Radio | |||
| 11 | 15A | Cigar Lighter | ||
| 12 | 15A | Parking Lamps, Automatic Headlamps | ||
| 13 | 20A | Horn Relay | ||
| 14 | 20A | Power lock Relay | ||
| 15 | 3A | ABS Module and Relay | ||
| 16 | 20A | Turn Signals | ||
| 17 | 7.5A | Heater and A/C Module | ||
| 18 | 15A | Air Bag Module | ||
| 19 | 15A | Interior Mirror, Auto Headlamps, Overhead Console, VIC/GDM Module, Heated Rear Window Relay, Coil, Illuminated Entry Relay, Chime Module | ||
| 20 | 10A | Heated Rear Window Switch, Overdrive Switch, Speed Control | ||
| 21 | 15A | Cluster (1993), Security Alarm Module, Lamp Outage Module | ||
| 22 | 15A | Air Bag Module, Speedometer, Tachometer, Telltales and Gauges | ||
| 23 | 15A | Heated Mirror Feed, Heated Rear Window Switch | ||
| 24 | 7.5A | Instrument Panel Illumination | ||
| 25 | 30A(Circuit Breaker) | Power Seats | ||
| 26 | 30A(Circuit Breaker) | Power Windows (1993-95), Power Sunroof (1993-95) | ||
| 27 | 10A(Circuit Breaker) | Security Alarm Module, Front Wiper | ||
| 28 | 30A | Heated Rear Window Relay | ||

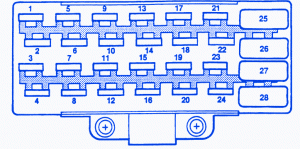

Jeep ZJ 1998 Main Engine Fuse Panel/Board – Fuse Symbol Map
