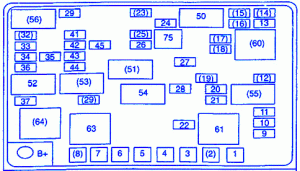

Kia Sephia LS 2001 Main Fuse Box/Block Circuit Breaker Diagram
| FUSE SYMBOL | FUSE MAP | AMPS | ||
|---|---|---|---|---|
| S/B FUSES | ||||
| 1 | IGNI | 20A | ||
| 2 | ABS | 30A | ||
| 3 | TNS | 30A | ||
| 4 | IG2 | 30A | ||
| 5 | - | - | ||
| 6 | - | - | ||
| 7 | COOL/ FAN | 20A | ||
| 8 | COND/ FAN | 20A | ||
| MINI FUSES | ||||
| 9 | STARTER | 15A | ||
| 10 | BLOWER | 25A | ||
| 11 | SR/ ACC | 10A | ||
| 12 | RR FOG | 10A | ||
| 13 | HAZARD | 15A | ||
| 14 | D/ LOCK | 25A | ||
| 15 | ABS | 30A | ||
| 16 | SUNROOF | 15A | ||
| 17 | P/W RH | 20A | ||
| 18 | p/W LH | 20A | ||
| 19 | RR WIPER | 15A | ||
| 20 | IGN2 | 25A | ||
| 21 | HEAD | 25A | ||
| 22 | IG COIL | 15A | ||
| 23 | OBD- II | 10A | ||
| 24 | DEFOG | 20A | ||
| 25 | OX SEND D | 10A | ||
| 26 | OX SEND U | 10A | ||
| 27 | FUEL PUMP | 10A | ||
| 28 | INJECTOR | 10A | ||
| 29 | A/CON | 10A | ||
| 30 | BTN | 30A | ||
| 32 | FRT FOG | 15A | ||
| 33 | TAIL RH | 10A | ||
| 34 | TAIL LH | 10A | ||
| 35 | HEAD LOW | 15A | ||
| 36 | HEAD HI | 15A | ||
| 37 | HORN | 15A | ||
| 41-45 | SPARES | 10A,15A,20A,25A,30A | ||
| MICRO RELAYS | ||||
| 50 | DEFOG | |||
| 51 | FUEL PUMP | |||
| 52 | HORN | |||
| 53 | AIR COND | |||
| 54 | EGI MAINAMP | |||
| 55 | HEADLAMP | |||
| 56 | TNS | |||
| MINI RELAYS | ||||
| 60 | P/WINDOWS | |||
| 61 | BLOWER | |||
| 63 | COOLING FAN | |||
| 64 | CONDENSER FAN | |||
| 75 | FUSE PULLER | |||
Kia Sephia LS 2001 Main Fuse Panel/Board – Fuse Symbol Map
