Fuse | [A] | Circuit protected |
---|---|---|
F1 | 15 | Ignition coil, Nozzles, EMS control unit |
F2 | 30 | Body electronics mainframe |
F3 | 10 | Body electronics mainframe, Warning light switch |
F4 | 15 | Air bags controller, Rain sensor |
F5 | 7,5 | Terminal clamp – 15 devices |
F6 | 7,5 | Backup light, Backup light relay, Parking Assist System control unit |
F7 | 7,5 | Adsorber blowdown valve, Mass airflow sensor/pressure sensor, Phase sensor, Oxygen sensor, Tire Pressure Monitoring System control unit |
F8 | — | Reserve |
F9 | 5 | Right side parking lights |
F10 | 5 | Left side parking lights, Instrument panel and buttons illumination, License plate lamp, Trunk compartment lamp, Glove box lamp |
F11 | 5 | Rear fog light |
F12 | 10 | Low beam, RH lamp |
F13 | 10 | Low beam, LH lamp |
F14 | 15 | Socket to connect additional devices in the trunk |
F15 | 10 | Rear window wiper, Rear window washer |
F16 | 5 | Driver door module |
F17 | — | Reserve |
F18 | — | Reserve |
F19 | — | Reserve |
F20 | — | Reserve |
F21 | 10 | High beam, RH lamp |
F22 | 10 | High beam, LH lamp |
F23 | 10 | RH fog light |

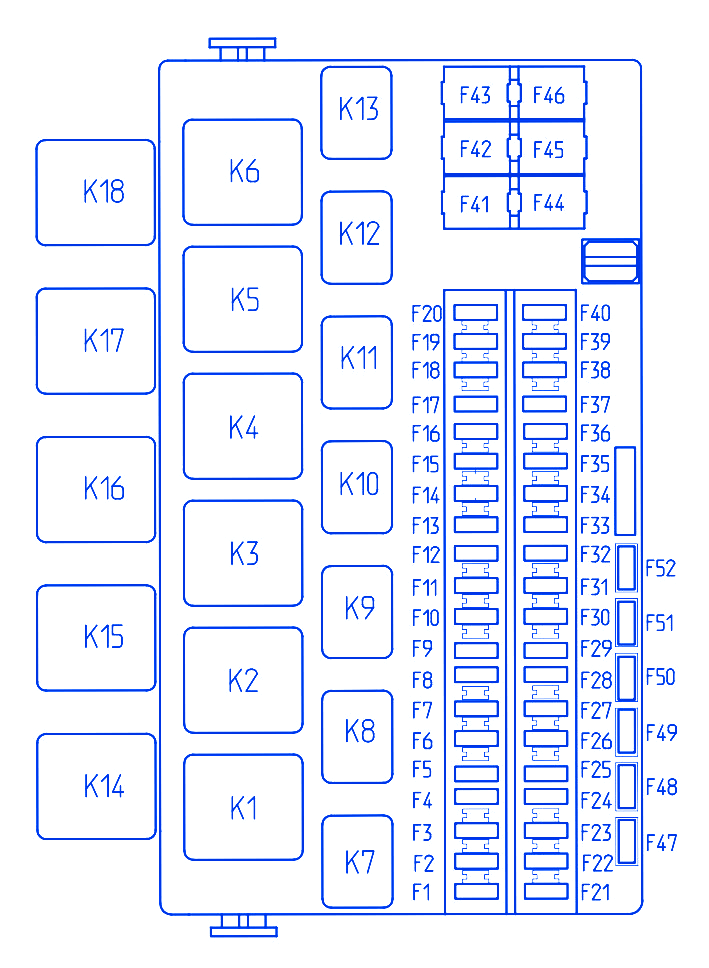

Lada Granta Passenger compartment Fuse Panel / Board – Fuse Symbol Map
Fuse | [A] | Circuit protected |
---|---|---|
F24 | 10 | LH fog light |
F25 | 15 | FR seats heating |
F26 | 5 | ABS control unit/ESP control unit |
F27 | 15 | Cigar lighter |
F28 | 15 | Fuel pump |
F29 | 20 | Body electronics mainframe, Windshield wiper, Windshield washer |
F30 | — | Reserve |
F31 | 7,5 | Air conditioner compressor clutch |
F32 | 7,5 | Stop signal, Automatic gearbox controller |
F33 | 25 | ABS control unit/ESP control unit |
F34 | 5 | Instrument cluster, Diagnostic connector |
F35 | — | Reserve |
F36 | 10 | Audio signal (horn) |
F37 | 10 | Multimedia system |
F38 | — | Reserve |
F39 | — | Reserve |
F40 | — | Reserve |
F41 | 50 | Windshield heater |
F42 | — | Reserve |
F43 | 50 | Windshield heater |
F44 | 30 | Heater electric fan, Climate control system controller |
F45 | 25 | Rear window defroster, Outside mirrors defroster |
F46 | — | Reserve |
Lada Granta Passenger compartment Fuse Panel / Board – Fuse Symbol Map
Fuse | [A] | Circuit protected |
---|---|---|
Passenger compartment (Standard version) | ||
Fuse | [A] | Circuit protected |
F1 | 15 | Ignition coil, Nozzles, EMS control unit |
F2 | — | Reserve |
F3 | 10 | Alarm signaling |
F4 | 20 | Windshield washer, Windshield wiper |
F5 | 7,5 | Terminal clamp – 15 devices |
F6 | 7,5 | Backup light/Backup light relay*, Turn indicators |
F7 | 7,5 | Adsorber blowdown valve, Mass airflow sensor/pressure sensor, Phase sensor, Oxygen sensor, Tire Pressure Monitoring System control unit* |
F8 | — | Reserve |
F9 | 5 | Right side parking lights |
F10 | 5 | Left side parking lights, Instrument panel and buttons illumination, License plate lamp, Trunk compartment lamp |
F11 | 5 | Rear fog light |
F12 | 10 | Low beam, RH lamp |
F13 | 10 | Low beam, LH lamp |
F14 | 15 | Socket to connect additional devices in the trunk |
F15 | 10 | Rear window wiper*, Rear window washer* |
F16 | — | Reserve |
F17 | — | Reserve |
F18 | — | Reserve |
F19 | — | Reserve |
F20 | — | Reserve |
F21 | 10 | High beam, RH lamp |
F22 | 10 | High beam, LH lamp |
F23 | 10 | RH fog light |
Lada Granta Passenger compartment Fuse Panel / Board – Fuse Symbol Map
Fuse | [A] | Circuit protected |
---|---|---|
F24 | 10 | LH fog light |
F25 | 15 | FR seats heating* |
F26 | 5 | ABS control unit/ESP control unit |
F27 | 15 | Cigar lighter |
F28 | 15 | Fuel pump |
F29 | 15 | Door lock blocking motor-reducer, Trunk lock blocking motor-reducer |
F30 | 10 | Day time running lights |
F31 | 7,5 | Air conditioner compressor clutch* |
F32 | 7,5 | Stop signal, Automatic gearbox controller*, Passenger compartment lamp |
F33 | 25 | ABS control unit/ESP control unit |
F34 | 5 | Instrument cluster, Diagnostic connector |
F35 | 15 | Air bags control unit |
F36 | 10 | Audio signal (horn) |
F37 | 10 | Multimedia system |
F38 | — | Reserve |
F39 | — | Reserve |
F40 | — | Reserve |
F41 | 50 | Windshield heater * |
F42 | 30 | FR door electric window lifters * |
F43 | 50 | Robotized gearbox controller * |
F44 | 30 | Heater electric fan, Climate control system controller * |
F45 | 25 | Rear window defroster, Outside mirrors defroster* |
F46 | — | Reserve |
