| Symbol | [A] | Circuit protected |
|---|---|---|
| K1 | 50 | Load reduction relay of the ignition switch |
| K2 | 30 | Starter relay |
| K3 | 40 | Radiator electric cooling fans relay |
| K4 | 30 | Radiator electric cooling fans relay |
| K5 | 30 | Air conditioner compressor clutch relay |
| K6 | 30 | Rear window and outside mirrors defroster relay |
| K7 | 20 | High beam relay |
| K8 | 20 | Audio signal (horn) relay |
| K9 | 20 | Low beam relay |
| K10 | 20 | Backup light relay |
| K11 | 20 | Electronic engine management system main relay |
| K12 | 20 | Fuel pump relay |
| K13 | 20 | Seats heating relay |
| K14 | 70 | Windshield heating relay |
| K15 | — | Reserve |
| K16 | — | Reserve |
| K17 | — | Reserve |
| K18 | — | Reserve |

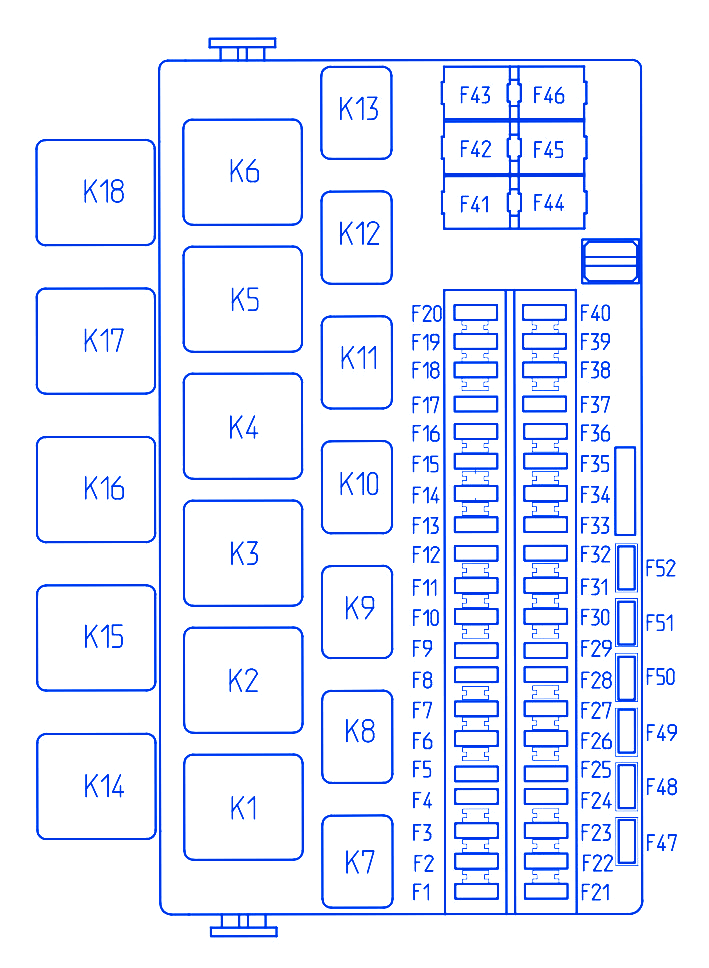

Lada Granta Relay Located Fuse Panel / Board – Fuse Symbol Map
| Fuse | [A] | Circuit protected |
|---|---|---|
| Norm and Standard versions | ||
| K1 | 50 | Load reduction relay of the ignition switch |
| K2 | 30 | Starter relay |
| K3 | Wiper relay | |
| K4 | 30 | Radiator electric cooling fans relay |
| K5 | Turn indicators and alarm signaling relay | |
| K6 | 30 | FR electric window lifters relay* |
| K7 | 20 | High beam relay |
| K8 | 20 | Audio signal (horn) relay |
| K9 | 20 | Low beam relay |
| K10 | 20 | Backup light relay |
| K11 | 20 | Electronic engine management system main relay |
| K12 | 20 | Fuel pump relay |
| K13 | 20 | Seats heating relay* |
| K14 | 70 | Windshield heating relay* |
| K15 | 30 | Rear window and outside mirrors defroster relay |
| K16 | 30 | Air conditioner compressor clutch relay * |
| K17 | — | Reserve |
| K18 | 40 | Radiator electric cooling fans relay * |
