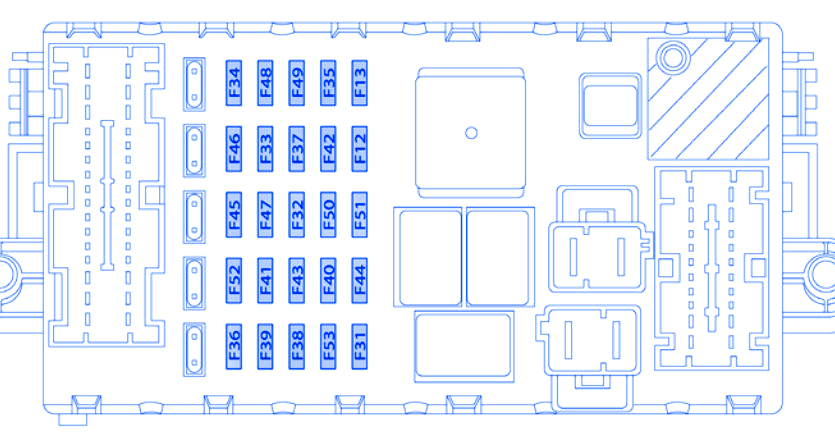

Lancia Delta mk3 2008 Dashboard Fuse Box / Block Circuit Breaker Diagram

Consumer	Fuse	Ampere rating [A]
Right dipped beam headlight	F12	7,5
Right dipped beam headlight (Xenon gas discharge bulb)	F12	15
Left dipped beam headlight, headlight alignment corrector	F13	7,5
Left dipped beam headlight (Xenon gas discharge bulb)	F13	15
Climate control system fan relay coil, body computer	F31	5
Spare	F32	—
Left rear electric window	F33	20
Right rear electric window	F34	20
Reversing lights, engine compartment control unit relay coils, brake light pedal control (normally closed contact), water in the diesel fuel sensor, air flow meter	F35	5
Central locking system control unit, fuel butterfly, dead lock, tailgate release	F36	20
Third brake light, instrument panel, Adaptive Headlights Node, control unit on left-hand gas discharge headlight	F37	7,5
Rear and front courtesy ligths (where fitted), sun visor lights, glove compartment ligtht and luggage compartment light	F38	10
Radio, radio-navigator, Blue&Me Node, alarm siren, alarm system on courtesy light, climate control unit, tyre pressure detection control unit, diagnostic connector, rear courtesy light	F39	10

Consumer	Fuse	Ampere rating [A]
Heated rear window	F40	30
Electric door mirror demisters, demisters on windscreen jets	F41	7,5
Brake Node, yaw sensor	F42	5
Windscreen wiper system on steering wheel interface, bi-directional windscreen/rearscreen washer pump system on steering wheel interface	F43	30
Cigar lighter/power socket on tunnel, luggage compartment power socket	F44	15
Spare	F45	—
Sunroof motor	F46	20
Driver-side front electric window	F47	20
Passenger-side front electric window	F48	20
Emergency, right, left and central control panels on radio/ radio-navigator (illumination), steering wheel controls (illumination), controls on front courtesy light (illumination), volume-sensing alarm control unit, electric sunroof system (controls illumination control unit), rain/dusk sensor, electro-chrome mirror, heated front seats controls	F49	5
Air Bag Node	F50	7,5
Cigar lighter (illumination), cruise control control, Convergence Node, Parking Sensor Node, AQS sensor, climate control unit, door mirror adjustment, tyre pressure detection control unit, Lane assistance Node, control unit on right-hand gas discharge headlight (*)	F51	5/7,5(*)
Rear wiper system on steering wheel interface	F52	15
Instrument panel, direction indicators	F53	7,5
