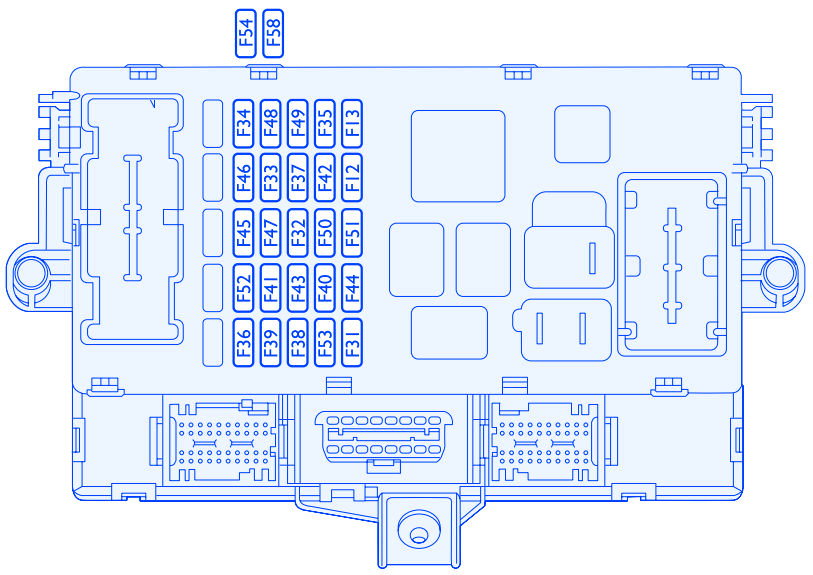

Lancia Musa FL 2007 On The Dashboard Fuse Box / Block Circuit Breaker Diagram

Fuse	User	Ampere rating [A]
F12	Right-hand dipped beam headlight	15
F13	Left-hand dipped beam headlight / headlight aiming device	15
F31	Reversing lights / engine compartment control box relay coils / body computer	7,5
F32	+30 Driver’s / passenger’s door control units (*)	15
F33	Left rear power window	20
F34	Right rear power window	20
F35	+15 Cruise control, signal from switch on brake pedal for control units (*)	7,5
F36	+30 Presetting for trailer control unit, rear locks front locks with single door control unit (*)	20
F37	+15 Third brake light, instrument panel, brake lights (*)	10
F38	Boot unlocking	15
F39	+30 EOBD diagnostic socket, sound system, navigator, tyre pressure control unit (*)	10
F40	Rear heated screen	30

Fuse	User	Ampere rating [A]
F41	Heated door electric mirrors	7,5
F42	+15 ABS / ESP control unit (*)	7,5
F43	Windscreen wiper/washer	30
F44	Cigar lighter / current socket on tunnel	20
F45	Heated seats	15
F46	Boot current socket	20
F47	Driver’s door control unit power supply (power window, lock)	20
F48	Passenger’s door control unit power supply (power window, lock)	20
F49	+15 utilities (left and central dashboard control lights, electric mirrors, heated seat control lighting, presetting for radiotelephone, navigator, rain / daylight sensors, parking sensor control unit, sunroof control lighting) (*)	7,5
F50	Airbag control unit	7,5
F51	+15 Tyre pressure control unit, ECO / Sport control (*)	7,5
F52	Rear screen wiper/washer	15
F53	+30 Direction indicators, hazard lights, instrument panel (*)	10
