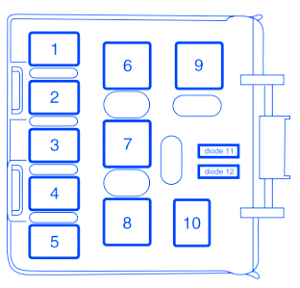

Lincoln Aviator 2005 Rear Relay Fuse Box / Block Circuit Breaker Diagram
| RELAY | DESCRIPTION |
|---|---|
| -Relay1 | Liftgate Release Solenoid |
| -Relay 2 | Open |
| -Relay3 | Open |
| .Relay4 | Trailer Tow Back-Uplamps |
| .Relay 5 | Open |
| .Relay 6 | Open |
| .Relay7 | Trailer tow Battery Charge |
| ,Relay 8 | Trailer Tow park Lamps |
| ,Relay9 | Open |
| ,Relay 10 | Puddle Lamps |
| Diode 11 | Open |
| Diode 12 | Open |
Lincoln Aviator 2005 Rear Relay Fuse Panel / Board – Fuse Symbol Map
