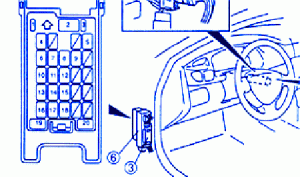

Mazda MX6 1998 Under Right Dash Fuse Box/Block Circuit Breaker Diagram

Mazda MX6 1998Under Right Dash Fuse Box/Block Circuit Breaker Diagram



SYMBOLFUSE MAPAMPS
1SPARE10A
2DOOR LOCK30A
3SPARE15A
4CIGAR15A
5SPARE30A
6RADIO10A
7ENGINE10A
8ILLUMI10A
9OPENER15A
10TURN10A
11BLOWER15A
12P/WINDOW30A
13R.DEF15A
14A/C10A
15WIPER20A
16SUN ROOF15A
17METER15A
18STOP20A
19HAZARD15A
20ROOM15A

Mazda MX6 1998Under Right Dash Fuse Panel/Board – Fuse Symbol Map
