Mazda3 2009 Passenger’s Side Fuse Box/Block Circuit Breaker Diagram
| Description | Fuse Rating | Protected Component | |
|---|---|---|---|
| 37 | D/LOCK 2 | 15A | Double Locking System |
| 38 | STOP LAMP/ HORN | 10A | Stoplamp, Horn |
| 39 | HEAD HIGH L | 10A | Headlight High Beam (LH) |
| 40 | HEAD HIGH R | 10A | Headlight High Beam (RH) |
| 41 | - | - | - |
| 42 | - | - | - |
| 43 | CIGAR | 15A | Lighter |
| 44 | RADIO | 7.5A | Audio System |
| 45 | MIRROR | 10A | Power Mirror |
| 46 | TAIL R | 7.5A | Taillight (RH), Parking Light (RH), License Plate Lights |
| 47 | OBD | 10A | For Protection of Various Circuits |
| 48 | - | - | - |
| 49 | TR/LOCK | - | - |
| 50 | - | - | - |
| 51 | - | - | - |
| 52 | SUN ROOF | 20A | Moonroof |
| 53 | WASHER | 20A | Windshield Wiper and Washer |
| 54 | - | - | - |
| 55 | P/WIND R | - | - |
| 56 | P/WIND L | - | - |
| 57 | ALARM | - | - |
| 58 | M/DEF | 7.5A | Mirror Defroster |
| 59 | - | - | - |
| 60 | HEAD LOW R | 15A | Headlight Low Beam (RH), Headlight Leveling |
| 61 | HEAD LOW L | 15A | Headlight Low Beam (LH) |
| 62 | - | - | - |
| 63 | - | - | - |
| 64 | - | - | - |
| 65 | SAS | 10A | Supplement Restraint System |
| 66 | METER | 10A | Instrument Cluster, Immobilizer System |
| 67 | IGNITION | 20A | ABS, DSC, Power Steering |
| 68 | WIPER | 20A | Windshield Wiper and Washer |
| 69 | ENGINE | 20A | For Protection of Various Circuits |
| 70 | IG SIG | 10A | Auto Wiper, Power Window Switch |
| 71 | SAS 2 | 7.5A | Seat Weight Sensor |
| 72 | - | - | - |
| 73 | - | - | - |
| 74 | SEAT WARM | 20A | Seat Warmer |
| 75 | D/LOCK 1 | 25A | Power Door Lock |
| 76 | A/C | 10A | Air Conditioner, Heater Control Unit |
| 77 | P/WIND L | 30A | Power Window (LH) |
| 78 | P/WIND R | 30A | Power Window (RH) |
| 79 | BACK | 10A | Reverse Lights |
| 80 | SUN ROOF | 7.5A | Moonroof |
| 81 | TAIL L | 7.5A | Taillight (LH), Parking Light (LH) |
| 82 | ILLUMI | 7.5A | Illumination |
| 83 | - | - | - |
| 84 | - | - | - |
| 85 | - | - | - |
| 86 | - | - | - |

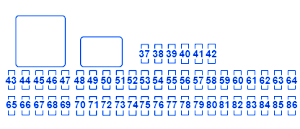

Mazda3 2009 Passenger’s Side Fuse Panel/Board – Fuse Symbol Map
