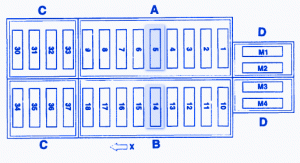

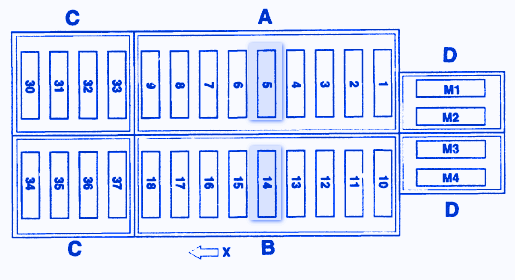

Mercedes Benz SLK-320 2005 Main Fuse Box/Block Circuit Breaker Diagram
| Symbol | Description |
|---|---|
| A | Fuse Block A, Fuses 1-9 |
| B | Fuse Block B, Fuses 10-18 |
| C | Fuse Block C, Fuses 30-37 |
| D | Maxi Fuse D, Fuses M1-M4 |
| X | Front of Vehoicle |
Mercedes Benz SLK-320 2005 Main Fuse Panel/Board – Fuse Symbol Map
