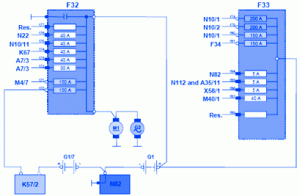

Mercedes-Benz W211 E220 2003 CDI Fuse Box/Block Circuit Breaker Diagram
| FUSE | FUNCTION |
|---|---|
| A7/3 | Traction System Hydraulic Unit |
| A35/11 | Voice Recognition Module (VCS) |
| F32 | Front Pre-Fuse Box |
| F33 | Rear Pre-Fuse Box |
| F34 | Interior Fuse Box (Left of Instrument Panel) |
| G1 | System Battery |
| G1/7 | Auxiliary Battery |
| G2 | Alternator |
| K57/2 | Auxiliary Battery Relay |
| K67 | ALRmatic Relay |
| N10/1 | Driver Signal Acquisition and Actuation Module (SAM-D) |
| N10/2 | Rear Signal Acquisition and Actuation Module (SAM-R) |
| N10/11 | Passenger Signal Acquisition and Actuation Module (SAM-P) |
| N22 | Air Conditioning Control Module |
| N82 | Battery Control Module |
| N112 | Communication Platform (CP) |
| M1 | Starter Motor |
| M4/7 | Electric Suction Fan With Integrated Control |
| M40/1 | Pneumatic Pump of Dynamic Seat Control |
| X58/1 | Interior Socket |
Mercedes-Benz W211 E220 2003 CDI Fuse Panel/Board – Fuse Symbol Map
