Mercedes C-240 2003 Fuse Box/Block Circuit Breaker Diagram

Mercedes C-240 2003 Fuse Box/Block Circuit Breaker Diagram

FunctionFuse No.
ABS56,59,60,62
Airbag Warning Lamps41,42,45,49
Airbag/Side Airbag Control Unit45,49
Air-Conditioner (SE)41,51
Anti-Theft Alarm (SE)8,9,4,1
Automatic Heater System41
Auxiliary Heater (SE)35
Blower Motor (Heater/AC)30,41
Brake Lights62
Central Locking21,22,32,33,57
Central Locking-Interior Switch41
Cigar Lighter47
COMAND (SE)64
Convenience Locking8,9,21,22,32,33
Courtesy Lights (SE)21.22
Diagnostic Socket62
Dipped Beam62,63
Dome Lights3,9
E-Call/ TeleAid (SE)40,44
Electronic Stability Program55,56,57,59,60,63
Engine Electronics48,53,54
Engine Fan51
Engine Residual Heat Syst.(SE)30,41,51
Fanfare43
Fog LampsElectronic
Fog Tail LightElectronic
Fuel Filler Flap Unlocking15
Fuel Pump4
Garage Door Opener (SE)9
Glove Compartment Light47
Hazard Warning Flasher41
Headlamp FlasherElectronnic
Headlamp Range Adjust (SE)51
Headlamp Washer System (SE)63
Heated Rear Window10,41
High Beam, High Beam Tell-TaleElectronic
Instrument Cluster42
Language Control System (SE)13,16
License Plate IlluminationElectronic
Locking Check-BackElectronic
Low Beam62,63
Main Beam Indic LampElectronic
Make-Up Mirror(SE)9
Mirror Adjustment21,22,63
Mirror Automatic Dimming(SE)9,21
Mirror Fold-in Feature(SE)21,22,63
Mirror Heater21,22
Multi-Contour Backrest(SA)13,19
Multi-Function Steering WheelElectronic
Navigation System (SE)64
Number Plate LightElectronic
Parking Lamps/Tail LampsElectronic
Parktronic System (SE)13,41
Power Socket, Boot (SE)12
Power Window, Front21,22
Power Window, Rear21,32,33
Radio64
Rain Sensor(SE)9
Rear Fog LightElectronic
Rear Head Release41
Rear Windscreen Wash System14,41
Remote Boot/Trunk Release8,21
Reversing LampsElectronic
Seat Adjustment, Driver2,21,27,29 sp-Coupe
Seat Adjustment, Passenger1,22,38,34 sp-Coupe
Seat Heater(SE)25,41
Sound System (SE)26
Start Enable31,52,57
Steering Lock31
Steering Wheel Adjustment (SE)2,21,27,29sp-coupe
Sun Blind for Rear Window (SE)20,41
Switch Illumination9,21,22,32,33,41,50
TeleAid (SE)/E-Call40,44
Telephone System (SE)13,16,40,44
Television (SE)3
Tilting/Sliding Roof(SE)9
Trailer Lighhts (SE)17
Trailer, Power Supply (SE)18
Transmission Electronics (SE)55,58,61
Turn Signal, t.s Indicator LampElectronic
Water Pump (AMG-Kompressor)5
Windscreen Washer PumpElectronic
Windscreen Wipers46

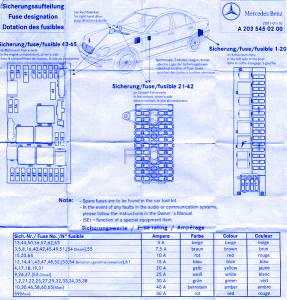

Mercedes C-240 2003 Fuse Panel/Board – Fuse Symbol Map
