Mercury Sable Wagon 1998 Fuse Box/Block Circuit Breaker Diagram

Mercury Sable Wagon 1998 Fuse Box/Block Circuit Breaker Diagram



Fuse PositionAmpsCircuits Protected
1-Not Used
25AInstrument Illumination
310ALeft Low Beam Headlamp
410ARight Low Beam Headlamp
55ABrake Shift Interlock, Rear Defrost
615AMLPS Switch, Backup Lamps, Speed Control
710AMLPS Switch, Starter Relay
85APower Antenna, RCU, GEM
910AABS
1020APCM Relay, Ignition Coil, PATS, Radio
115AInstrument Cluster
125AInstrument Cluster, Autolamps, Transmission Control Switch, ICP, GEM
135AAirbag, Blower Motor, EATC
145AAir Suspension
1510AMulti-Function Switch (Turn Singal)
16-Not Used
1730AFront Wiper/washer
185AHeadlamp Switch
1915ARear Wiper/Washer

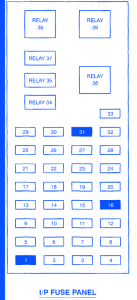

Mercury Sable Wagon 1998 Fuse Panel/Board – Fuse Symbol Map
