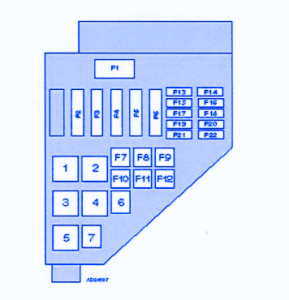

MG-ZS 2001 Under Dash Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Amps | Fuse Map |
|---|---|---|
| F1 | 150A | Alternator |
| F2 | 80A | Electric Windows Relay, Fascia Fuse Box/Relay Plate |
| F3 | 50A | Ignitin Switch, Fascia Fused box/Relay Plate |
| F4 | 80A | Engine Coolant Blower motor Relay (except V6) |
| 80A | Engine Coolant Blower motor Control Module (V6) | |
| F5 | - | - |
| F6 | 100A | Glow Plug Relay |
| F7 | 40A | Heated Rear Window Relay |
| F8 | 50A | ABS Control Module |
| F9 | 50A | Light Switch, Fascia Fuse Box/Relay Plate |
| F10 | 40A | Heater Blower Relay |
| F11 | 50A | AC Condenser Blower Motor |
| F12 | 50A | Starter Motor Relay |
| F13 | 15A | Alternator, Vehicle Speed sensor (VSS), Clutch Pedal Position (CPP) Switch (Diesel) |
| 15A | Vehicle Speed Sensor (VSS), Transmission Vehicle Speed Sensor (AT), Heated Oxygen Sensor (HO2S)(Petrol except V6 | |
| 15A | Intake Manifold Air Control Solenoids, Crankshaft Position (CKP) Sensor, Evaporative Emission (EVAP)Canister Purge Valve, Heated Oxygen Sensor (HO2S)(V6) | |
| F14 | 20A | Transmission Control module (TCM), Park/Neutral Position (PNP) Switch |
| F15 | 15A | Glow Plug Relay, Mass Air Flow(MAF) Sensor, Exhaust gas Recirculation(EGR) Solenoid, Injection Pump Assembly (Diesel) |
| 15A | Heated Oxygen Sensor (HO2S), Evaporative Emission (EVAP) Canister Purge Valve, Chamshaft Position (CMP) Sensor (Petrol Except V6) | |
| 15A | Heated Oxygen Ssensor (HO2S), Chamshaft Position (CMP) Sensor V6 | |
| F16 | 10A | AC Compressor Clutch Relay, Engine Coolant Blower motor Relay (Except V6) |
| 10A | AC Compressor Clutch Relay, Engine Coolant Blower Motor Control Module, AC Condenser Blower Motor Control Module (V6) | |
| F17 | 10A | Multifunction Control Module, Brake Pedal Position (BPP)Switch, Horn Relay |
| F18 | 15A | Fog Lamp Relay |
| F19 | 15A | Hazard Warning Lamp Switch, Instrument Panel |
| F20 | 15A | Audio System, Clock |
| F21 | 10A | AC Compressor CVlutch Relay |
| F22 | 20A | Inertia Fuel Shut-Off (IFS) Switch, Fuel Pump Relay |
| 1 | - | |
| 2 | Heated Rear Window Relay | |
| 3 | Fuel Pump Relay | |
| 4 | Headlamp High Beam Relay | |
| 5 | Heater Blower Relay | |
| 6 | Fog Lamp Relay | |
| 7 | AC Compressor Clutch Relay | |
MG-ZS 2001 Under Dash Fuse Panel/Board – Fuse Symbol Map
