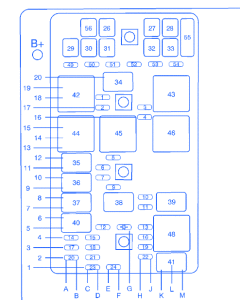

Pontiac Grand Prix 2007 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Fuse Map | Amps |
|---|---|---|
| MINI FUSES | ||
| 1 | LH HI BEAM | 10A |
| 2 | RF HI BEAM | 10A |
| 3 | LF LO BEAM | 10A |
| 4 | RF LO BEAM | 10A |
| 5 | WIPER/WS | 25A |
| 6 | WASHER/RVC | 15A |
| 7 | FOG LPS | 10A |
| 9 | SIR | 10A |
| 10 | AUX PWR | 25A |
| 11 | HORN | 15A |
| 12 | EMISSION | 10A |
| 13 | A/C CLUTCH | 10A |
| 14 | O2 SSR | 15A |
| 15 | PCM | 10A |
| 16 | PCM/ETC | 15A |
| 17 | ETC | 15A |
| 18 | DISPLAY | 10A |
| 19 | ABS SOL | 25A |
| 20 | FUEL INJ | 15A |
| 21 | TRANS SOL | 10A |
| 22 | FUEL PP | 15A |
| 23 | ABS | 10A |
| 24 | ELEK IGN | 15A |
| J-STYLE FUSES | ||
| 26 | BATT MAIN 1 | 40A |
| 27 | BATT MAIN 2 | 50A |
| 28 | BATT MAIN 3 | 40A |
| 29 | FAN 1 | 30A |
| 30 | BATT MAIN 4 | 30A |
| 31 | ABS MTR | 40A |
| 32 | FAN 2 | 30A |
| 33 | STARTER | 40A |
| 56 | AIR PUMP | 50A |
| MICRO RELAYS | ||
| 34 | HI BEAM | |
| 35 | HDM MODULE | |
| 36 | FOG LP | |
| 37 | IGN | |
| 38 | A/C COMP | |
| 39 | HORN | |
| 40 | P/TRAIN | |
| 41 | FUEL PP | |
| MINNI RELAYS | ||
| 42 | FAN 1 | |
| 43 | FAN 3 | |
| 44 | WIPER HI | |
| 45 | WIPER | |
| 46 | FAN 2 | |
| 48 | CRANK | |
| SPARE FUSES | ||
| 49 | - | 10A |
| 50 | - | 15A |
| 51 | - | 25A |
| 52 | - | - |
| 53 | - | - |
| 54 | - | - |
| FUSE PULLER | ||
| 55 | FUSE PULLER | |
| DIODE | ||
| A/C CLU | ||
Pontiac Grand Prix 2007 Fuse Panel/Board – Fuse Symbol Map
