Pontiac Grand SE 1997 Engine Compartment Fuse Box/Block Circuit Breaker Diagram

Pontiac Grand SE 1997 Engine Compartment Fuse Box/Block Circuit Breaker Diagram



SymbolColorAmpsCell Mini Fuse
ABS/EVOYEL20AAntilock Brake Solenoids and Variable Effort Steering
ERLSYEL20ABack-Up Lamps, Canister Purge Valve, Canister Vent Solenoid, Exhaust Gas Recirculation Valve, Automatic Transaxle, Antilock Brakes, Variable Effort Steering, and Air Conditioning Compressor
F/P INJRYEL20AFuel Pump and Fuel Injectors
IGN MODYEL20AIgnition System
PCM BATTRED10APowertrain Control Module
HVAC BLO MOTGRN30AHVAC High Blower and Generator Maxi Fuse
ABSAMBER40AAntilock Brake and Variable Effort Steering
PWR ACCBLU60APower Accessories, Stop Lamp Circuits, and Rear Defogger
HDLPBLU60ALighting
CLG FANAMBER40AEngine Cooling Fan
IGN SWBLU60AIgnition Switched Circuits

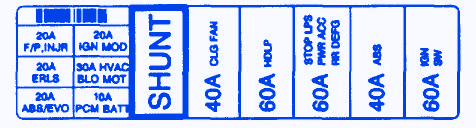

Pontiac Grand SE 1997 Engine Compartment Fuse Panel/Board – Fuse Symbol Map
