Pontiac Grand SE 2005 Engine Fuse Box/Block Circuit Breaker Diagram
| Symbol | Color | Amps | Cell Mini Fuse | |||
|---|---|---|---|---|---|---|
| ABS/EVO | YEL | 20A | Antilock Brake Solenoids and Variable Effort Steering | |||
| ERLS | YEL | 20A | Back-Up Lamps, Canister Purge Valve, Canister Vent Solenoid, Exhaust Gas Recirculation Valve, Automatic Transaxle, Antilock Brakes, Variable Effort Steering, and Air Conditioning Compressor | |||
| F/P INJR | YEL | 20A | Fuel Pump and Fuel Injectors | |||
| IGN MOD | YEL | 20A | Ignition System | |||
| PCM BATT | RED | 10A | Powertrain Control Module | |||
| HVAC BLO MOT | GRN | 30A | HVAC High Blower and Generator | |||
| Maxi Fuse | ||||||
| ABS | AMBER | 40A | Antilock Brake and Variable Effort Steering | |||
| PWR ACC | BLU | 60A | Power Accessories, Stop Lamp Circuits, and Rear Defogger | |||
| HDLP | BLU | 60A | Lighting | |||
| CLG FAN | AMBER | 40A | Engine Cooling Fan | |||
| IGN SW | BLU | 60A | Ignition Switched Circuits | |||

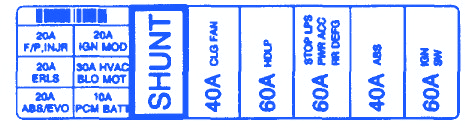

Pontiac Grand SE 2005 Engine Fuse Panel/Board – Fuse Symbol Map
